BbTALKIN' Unit Installation Guide

Turn on unit:unit



Standard Two Way Communication – 2 piece Main Unit Set (A02pro):

Hold the center button until the blue light comes on for each unit.  Once  both units are turned on, press the intercom button once on only one of the units.  You will hear a beep when they are paired.  (The main unit two piece set comes paired.)

Make sure all units received are fully charged.  A red light indicates the  units need to be charged.  A blue light indicates fully charged.  DO NOT  CHARGE  OVERNIGHT.  The unit’s battery life is 8 hours.  To fully charge the battery it takes approximately 1 to 1.5 hours.  Overcharging can compromise the battery  life of the units.

If your units un-pair, please refer to the following video: https://youtu.be/Zd4HBmiZHmA

If you are pairing 3-4 units together, please refer to the following video: https://youtu.be/fMn0_BsSlz4

Mounting

Open the spare parts kit within the main unit box.  Lay out all pieces.  There is one accessory kit for each unit.



Accessory Kit includes:

Marine helmet and headphones mount  headphone-helmet-mount
Double side tape  double-side-tape
Surf hat, arm band, snow goggle mount  hat-armband-goggle-mount
Alcohol prep  alcohol-prep
Micro USB charge cable  microUSBcable
Falling prevention strap  falling-prevention-strap
Microphone sponge for earphone  mic-foam-earphone

To Mount on Helmet and Non-Waterproof Headphones:

  1. Locate the two sided adhesive tapedouble-side-tape
  2. The solid rectangle mounting plateheadphone-helmet-mount
  3. Alcohol padalcohol-prep



Wipe down the slightly curved side of the plastic mounting plate with the alcohol pad and also the mounting location on the helmet. (Left side of the helmet near the ear pad.)

Remove the white side of the adhesive tape.  Adhere this to the plastic mounting  plate. Now remove the red side of the adhesive tape and adhere to the helmet.        Press on firmly.

Once on the helmet, it is not removable.

For the headphones, follow the same procedure and mount the plastic mounting plate on the left side.  (Same side as the boom mic.)



Helmet example:helmet-example



Headphones example:headphone-example



To Mount on Surf Hat, Snow Goggles and accessories with Arm Bands:



Locate the plastic piece that has four forks:hat-armband-goggle-mount



The four forks will insert into the Velcro band on the surf hat or arm band.  Insert half on the top two forks and the other half on the bottom two forks.  Make sure  the two square holes on the other side of the plastic plate are on the top.



Surf Hat example:surfhat-example

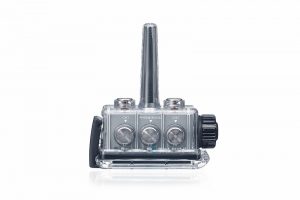

Waterproof Housing:

To mount the waterproof housing to the mounting plate, align the two tabs on the back of the waterproof housing with the two square holes on the mounting plate.  Push both sides in and then press down to lock in place.

To remove, make sure both sides are pressed up and pulled straight out.  (Applying uneven pressure to either side when attempting to remove the waterproof case risks breaking the tabs which is not covered by warranty.)

Locate the connector coming from the ear pads and plug into the waterproof housing.  Make sure you securely tighten the black nob.  Failure to do so will cause water intrusion which will compromise your main unit which is not covered by warranty.

Note: Although the waterproof housing is installed onto your white headphones, these headphones are not waterproof.

If you intend on using these units and performing extreme tricks or intense training, there are occasions when you can forcefully impact the water or objects which can cause the waterproof housing to become loose or break.  If you are using BbTALKIN when training during watersports where the units are consistently impacting the water, we recommend re-enforcing the mounting of the main units.  If continued impact is occurring during lessons or training, always check to make sure your case has not received any damage and your main unit is secure at all times.

You can re-enforce the waterproof housing by adhesive or zip ties.



Print BbTALKIN’ Unit Installation Guide (PDF)

BbTALKIN' Unit Installation Guide
Click the button to print the the BbTALKIN’ Unit Installation Guide (PDF format).

Important Warranty Information

The main unit and master units are not waterproof. Any exposure to water can destroy the unit.
Prior to each use, make sure the waterproof case did not endure any damage or cracks. If you observe damage or cracks to the waterproof case, do not use with the main or master unit devices. You will need to purchase a replacement case. Actions such as dropping the case can cause damage.

FCC APPROVED: Identifier 2AFMY-BBTPRO

WARNING FOR USES:

  • When charging, use an AC Adapter less than 5V otherwise this will damage the IC unit and void any warranty.
  • Do not modify or disassemble the device
  • Areas you cannot use: in the airplane, near people with medical devices or equipment such as a pacemaker, etc.
  • Do not expose this device to extreme temperature
  • The device must be stored at room temperature out of direct sunlight
  • If the device or waterproof case appears to be damaged, stop using immediately
  • If you are using your equipment in salt water, always fresh water rinse after use
  • Do not leave the units on charge over night.

Before each use, make sure the black knob is securely tightened on the waterproof case to prevent water entering the waterproof case thus causing damage to the main or master unit.

EXTREME MANEUVERS:
If you intend on using these units and performing extreme tricks or intense training, there are occasions when you can forcefully impact the water or objects. If you are using BbTALKIN when training during extreme watersports, we recommend re-enforcing the mounting of the main units. If continued impact is occurring during training, always check to make sure your case has not received any damage and your main unit is secure at all times.
Re-enforcement example with zip ties:
instructions-img1

BbTALKIN, their distributors or dealers are not responsible for main units damaged or lost during use.

LIMITED WARRANTY:
This limited warranty covers defects in materials and workmanship in this product for twelve (12) months from the date of the original purchase for main and master devices ONLY. All other parts are six (6) months from the date of the original purchase.

This limited warranty does not cover any damage, rusty USB part, deterioration or malfunction resulting in alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping, lighting, power surges or other acts of nature.

This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by BbTALKIN to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.
