Headset Helmet

How to Maintain your Helmet Speaker Pad’s Microphone and Speaker

  1. Use fresh water to wash all of the headset.
  2. Make sure to rinse the microphone and speaker piece.
  3. DO NOT use high pressure spray.

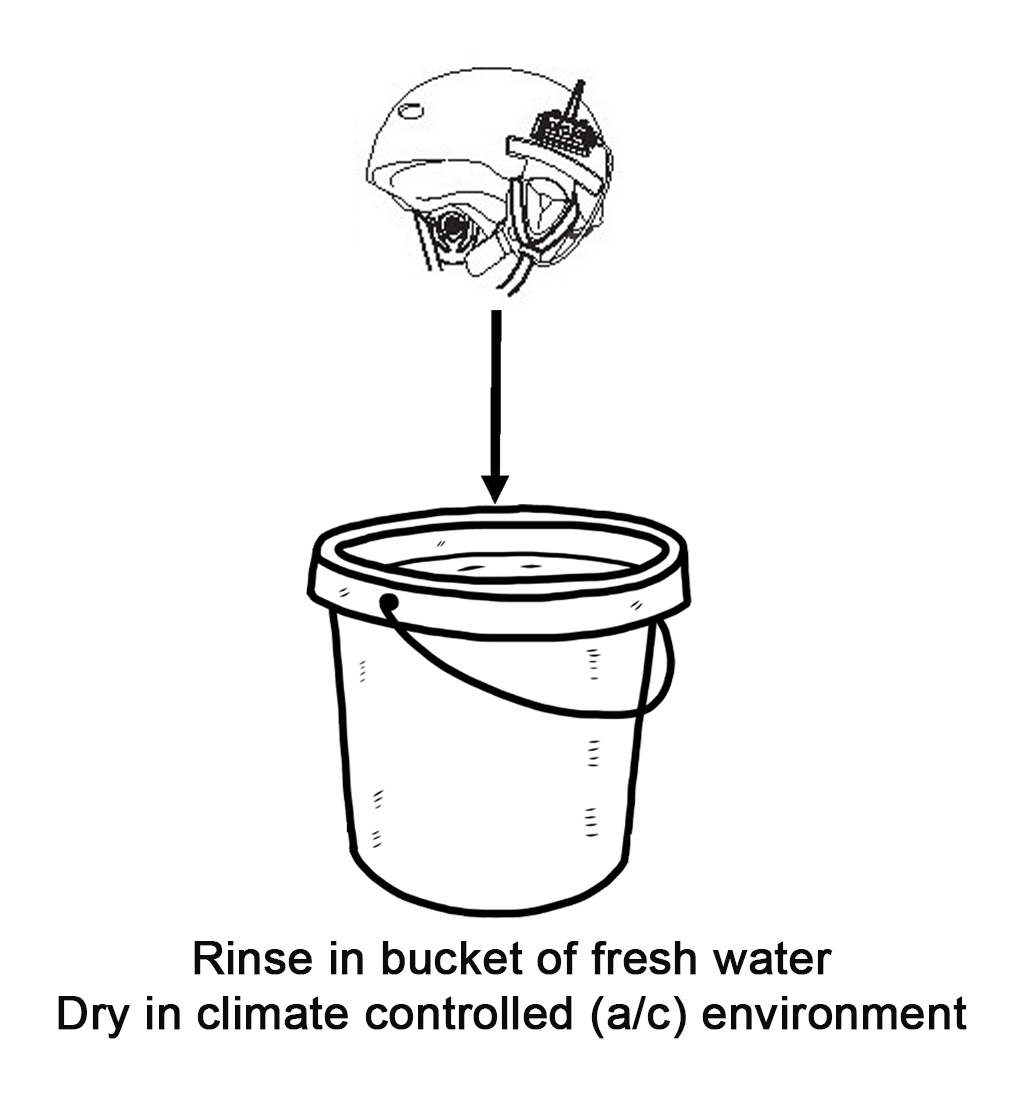

  4. Best to submerge in bucket of fresh water for through wash.
  5. Hang to dry in a well ventilated place.

Single or Double Sided Helmet Speaker Pad

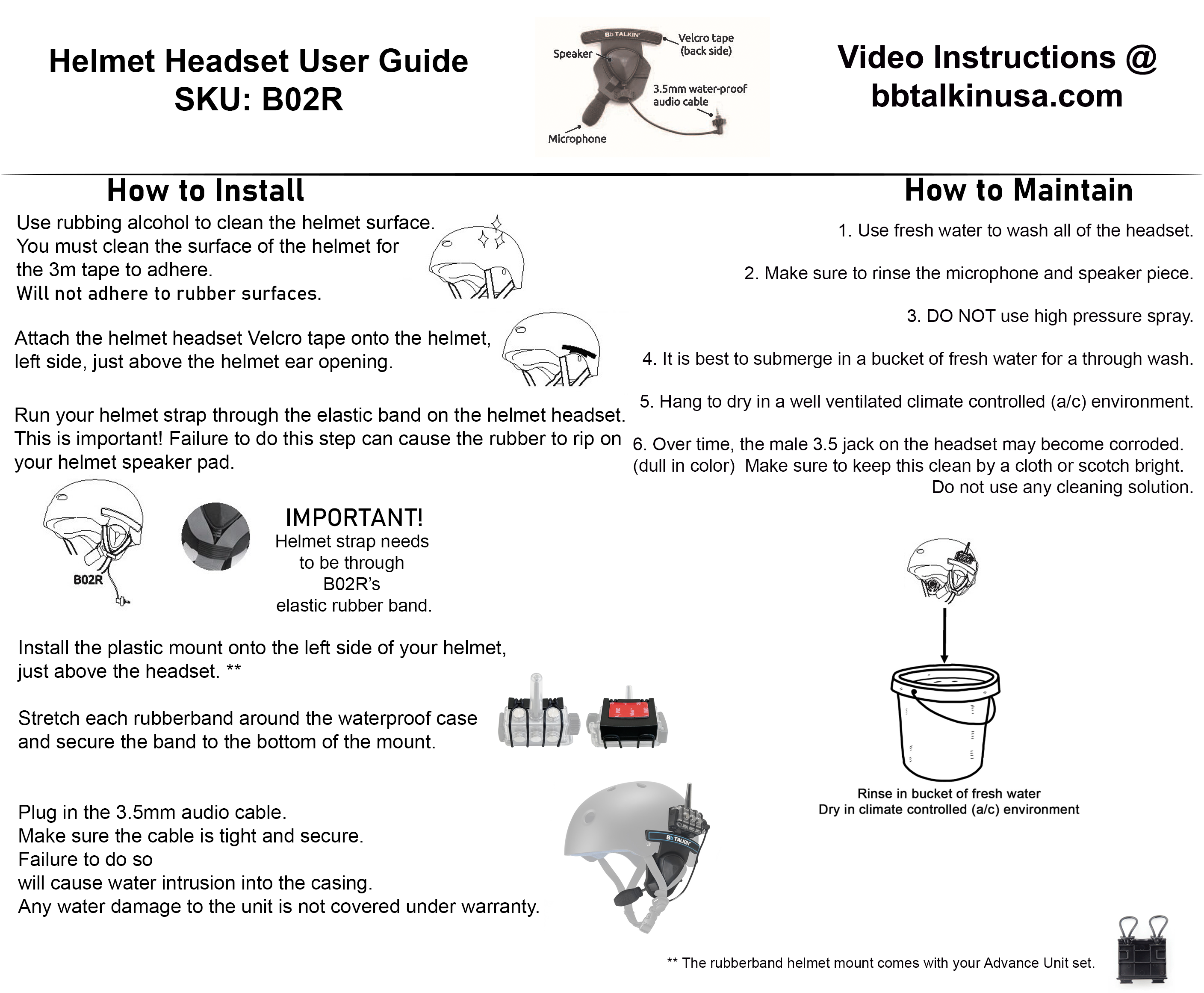

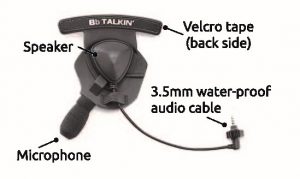

B02R:

Click here for downloadable version of B02R manual

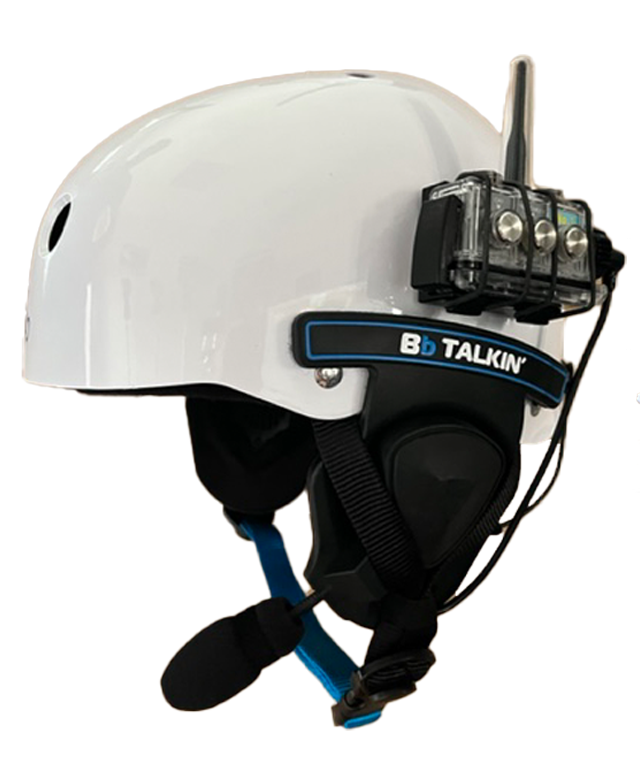

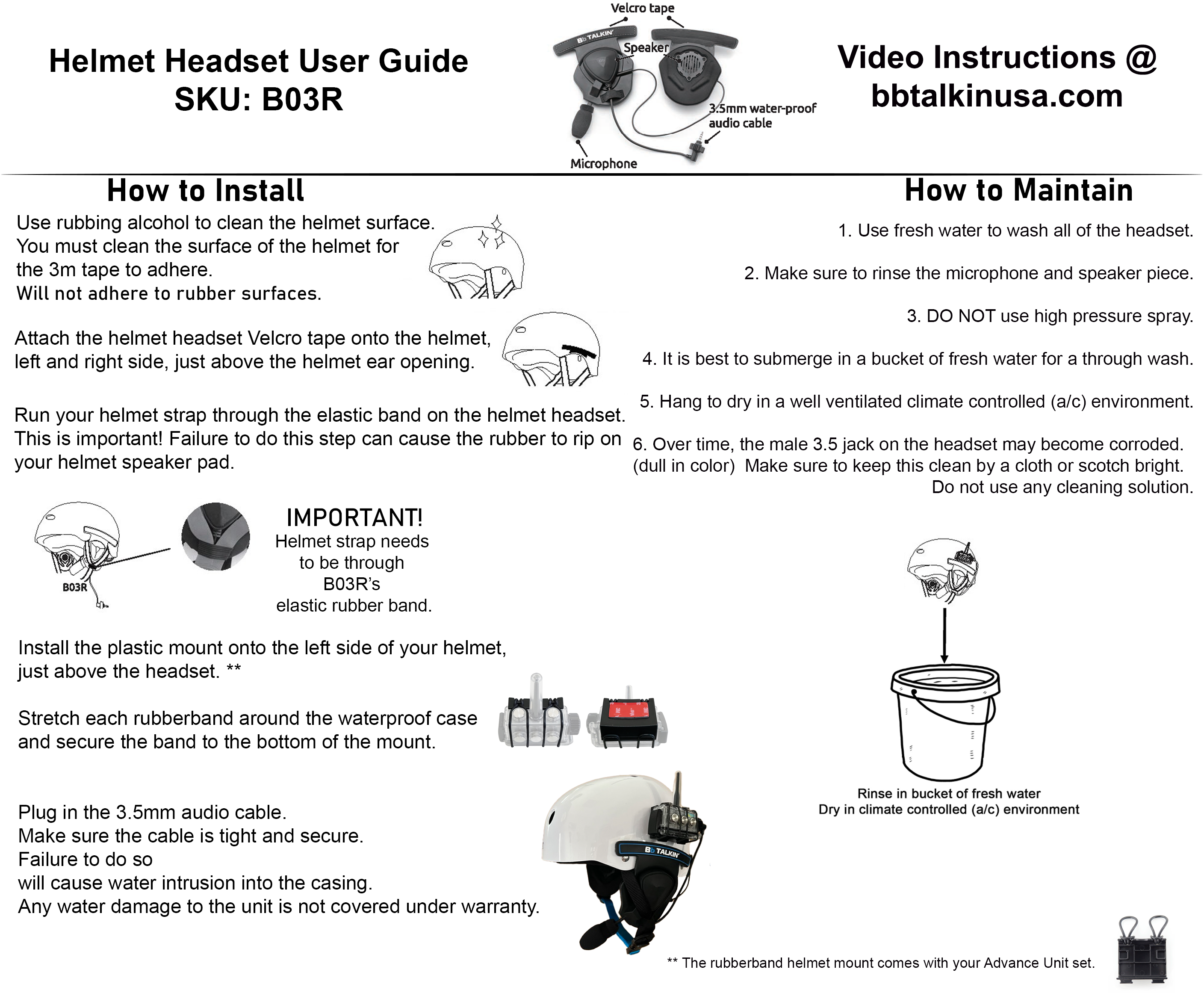

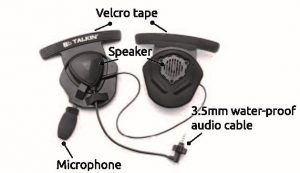

B03R:

Click here for downloadable version of B03R manual

If using in salt water, you must fresh water rinse.  Failure to do so can cause corrosion and product failure.

  1. Use the alcohol prep to clean up the helmet surface. You must clean the surface of your helmet to insure the 3m tape will adhere to the surface.  The 3m tape will not adhere to rubber surfaces.
  2. Attach the helmet speaker pad Velcro tape onto the helmet. If you have a single sided helmet speaker pad, mount onto the left side of the helmet.
  3. Attached the helmet speaker pad to the Velcro.
  4. Run your helmet strap through the elastic band on the helmet speaker pad. This is important!  Failure to do this step can cause the rubber to rip on your helmet speaker pad.
  5. Install the plastic mount onto the left side of your helmet, just above the helmet speaker pad.
  6. Mount the waterproof case into the plastic mount. Make sure both sides of the casing is securely into the mount.
  7. Plug in the 3.5mm audio cable. Make sure the cable is tight and secure.  Failure to do so will cause water intrusion into the casing.  Any water damage to the unit within the casing is not covered under warranty.
  8. Make sure after each use that your case is secure and sealed.

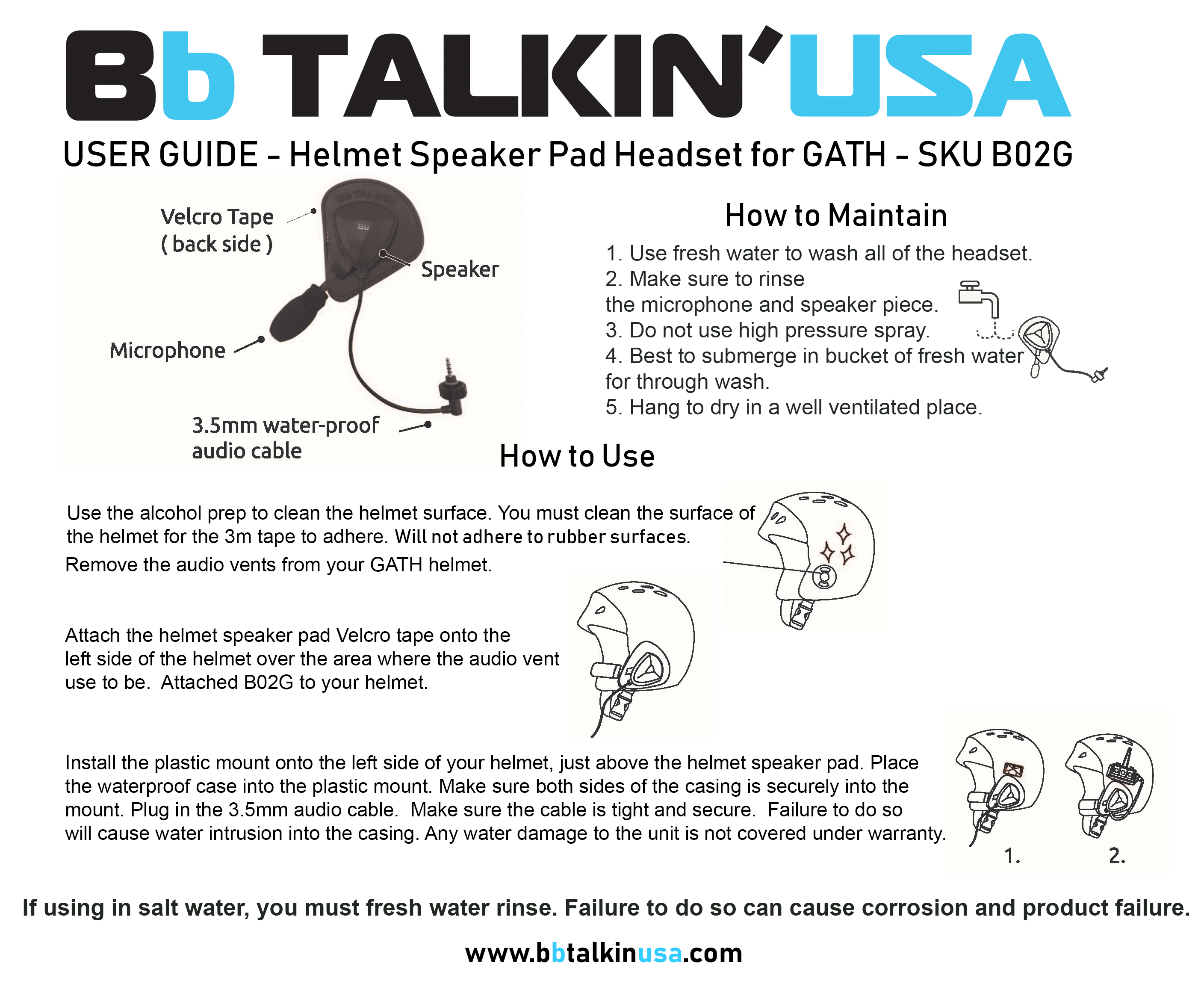

B02G: Single sided helmet speaker pad for GATH Sport helmet

Click here for downloadable version of B02G manual

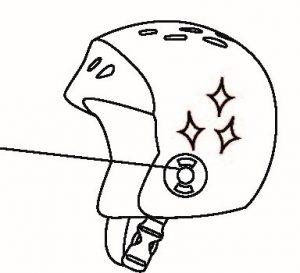

  1. Use the alcohol prep to clean up the helmet surface. You must clean the surface of your helmet to insure the 3m tape will adhere to the surface.  The 3m tape will not adhere to rubber surfaces.
  2. Remove the audio vents from your GATH helmet.

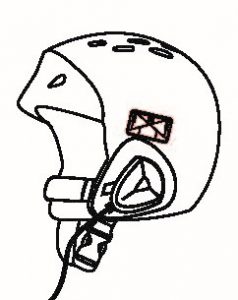

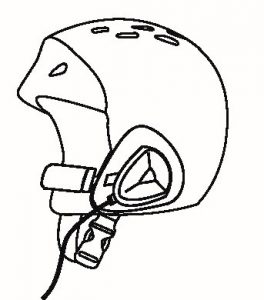

  3. Attach the helmet speaker pad Velcro tape onto the left side of the helmet over the area where the audio vent use to be.  Attached B02G to your helmet.
  4. Install the plastic mount onto the left side of your helmet, just above the helmet speaker pad.
  5. Mount the waterproof case into the plastic mount. Make sure both sides of the casing is securely into the mount
  6. Plug in the 3.5mm audio cable. Make sure the cable is tight and secure. Failure to do so will cause water intrusion into the casing.  Any water damage to the unit within the casing is not covered under warranty.
  7. Make sure after each use that your case is secure and sealed.
