Waterproof IPX7

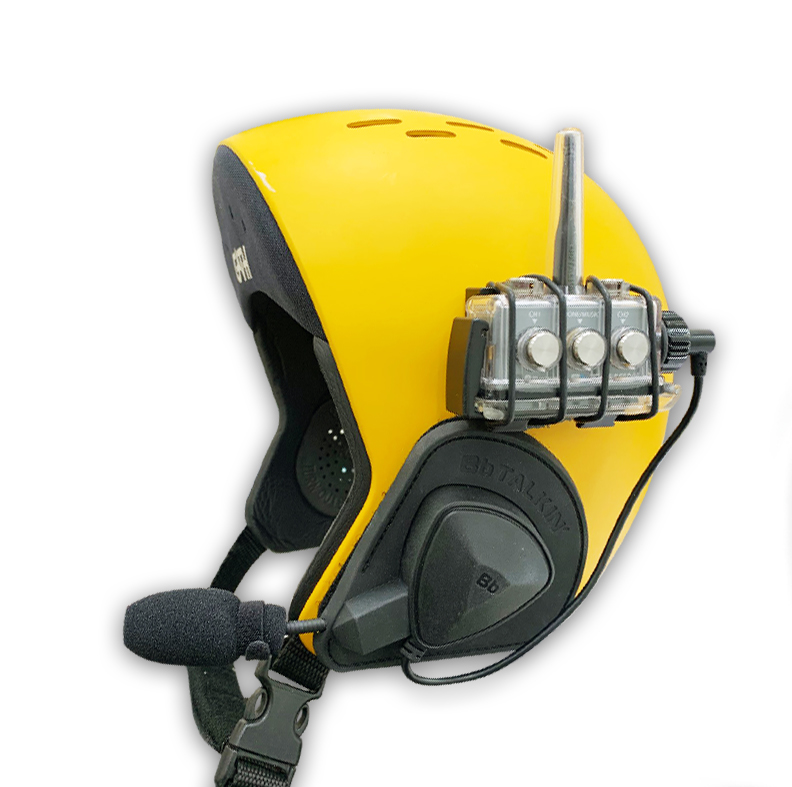

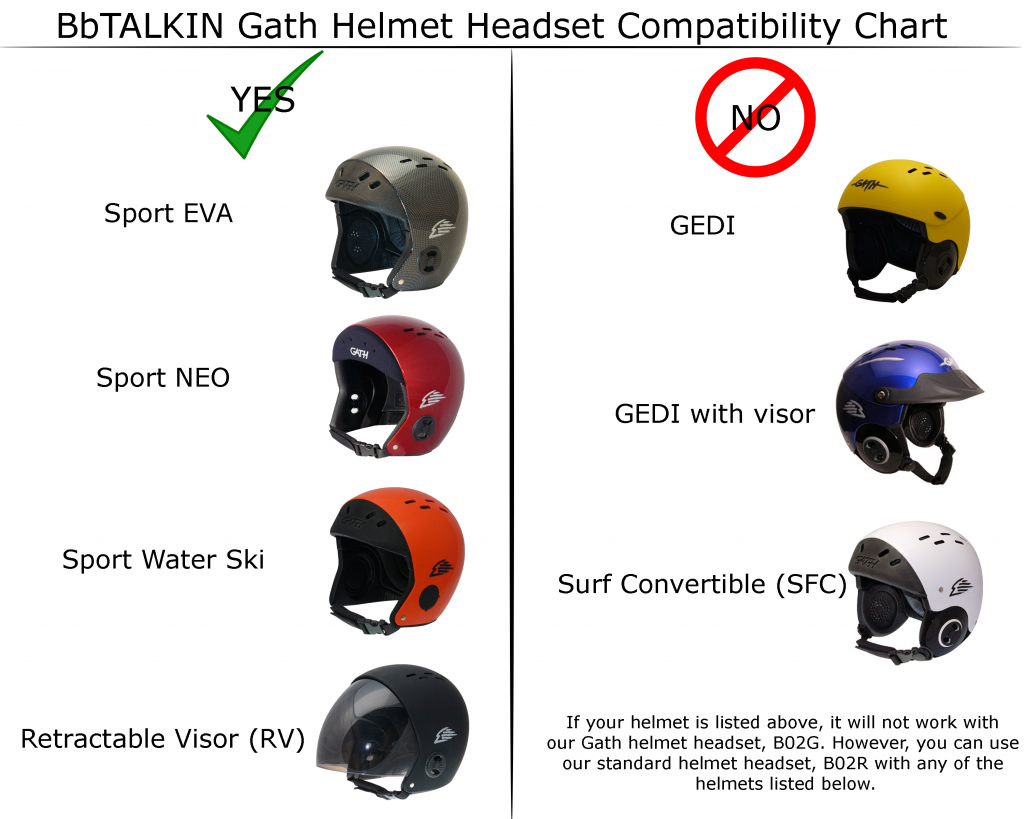

Single sided helmet speaker pad with microphone for your GATH helmet by BbTALKIN USA. This pad fasten to the left side of your helmet by a marine grade Velcro. Please refer to the chart above to make sure this headset is compatible with your style GATH helmet. This headset is not compatible with all GATH helmets. If you own a GATH helmet that does not work with this headset, please use our standard single sided headset.
This helmet pad is designed to be used with our units. You plug the boom microphone’s 3.5mm audio cable directly into your unit to establish communication. The microphone and speaker piece on the helmet pads are completely waterproof. The design of the helmet pad allows the flexibility to change out either the microphone piece or speaker piece if it becomes damaged over time.
Click here for downloadable instructions.
WARRANTY
From the date of purchase, the helmet speaker pad and all it’s components are covered for 6 months. Please see our warranty section for complete warranty details.
SKU: B02G
EAN: 4713309040252

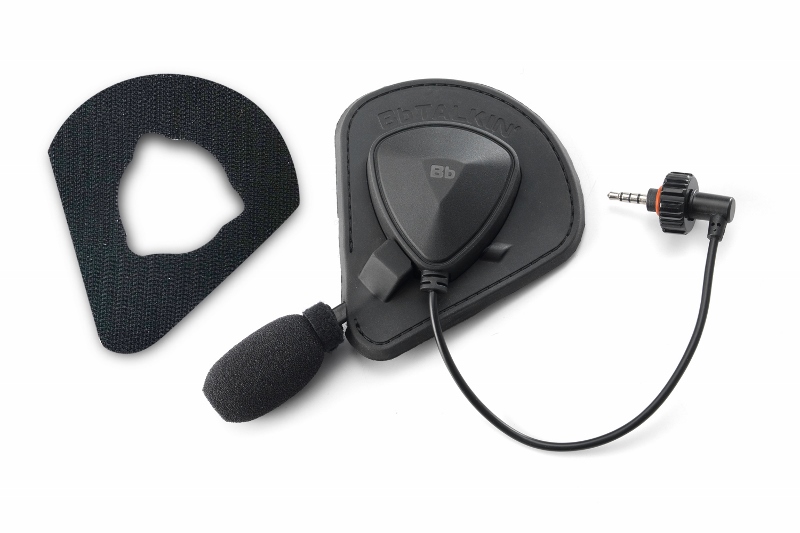

Rubber helmet speaker pad, left side with Velcro tape
- Use fresh water to wash all of the headset.
- Make sure to rinse the microphone and speaker piece.
- DO NOT use high pressure spray.
- It is best to submerge in a bucket of fresh water for a through wash.
- Hang to dry in a well ventilated climate controlled (a/c) environment.
- Over time, the male 3.5 jack on the headset may become corroded. (dull in color) Make sure to keep this clean by a cloth or scotch bright. Do not use any cleaning solution. It is best to keep the headset plugged into your unit if possible to help avoid corrosion build up.
If using in salt water, you must fresh water rinse. Failure to do so can cause corrosion and product failure.
1. Use the alcohol prep to clean up the helmet surface. You must clean the surface of your helmet to insure the 3m tape will adhere to the surface. The 3m tape will not adhere to rubber surfaces.
2. Remove the audio vents from your GATH helmet.
3. Attach the helmet speaker pad Velcro tape onto the left side of the helmet over the area where the audio vent use to be.
4. Install the plastic mount onto the left side of your helmet, just above the helmet speaker pad. (The rubberband helmet mount comes with your Advance Unit set)
5. Stretch each rubberband around the waterproof case and secure the band to the bottom of the mount.
6. Plug in the 3.5mm audio cable. Make sure the cable is tight and secure. Failure to do so will cause water intrusion into the casing. Any water damage to the unit within the casing is not covered under warranty.
7. Make sure after each use that your case is secure and sealed.
x1: Single sided helmet speaker pad with microphone and Velcro
