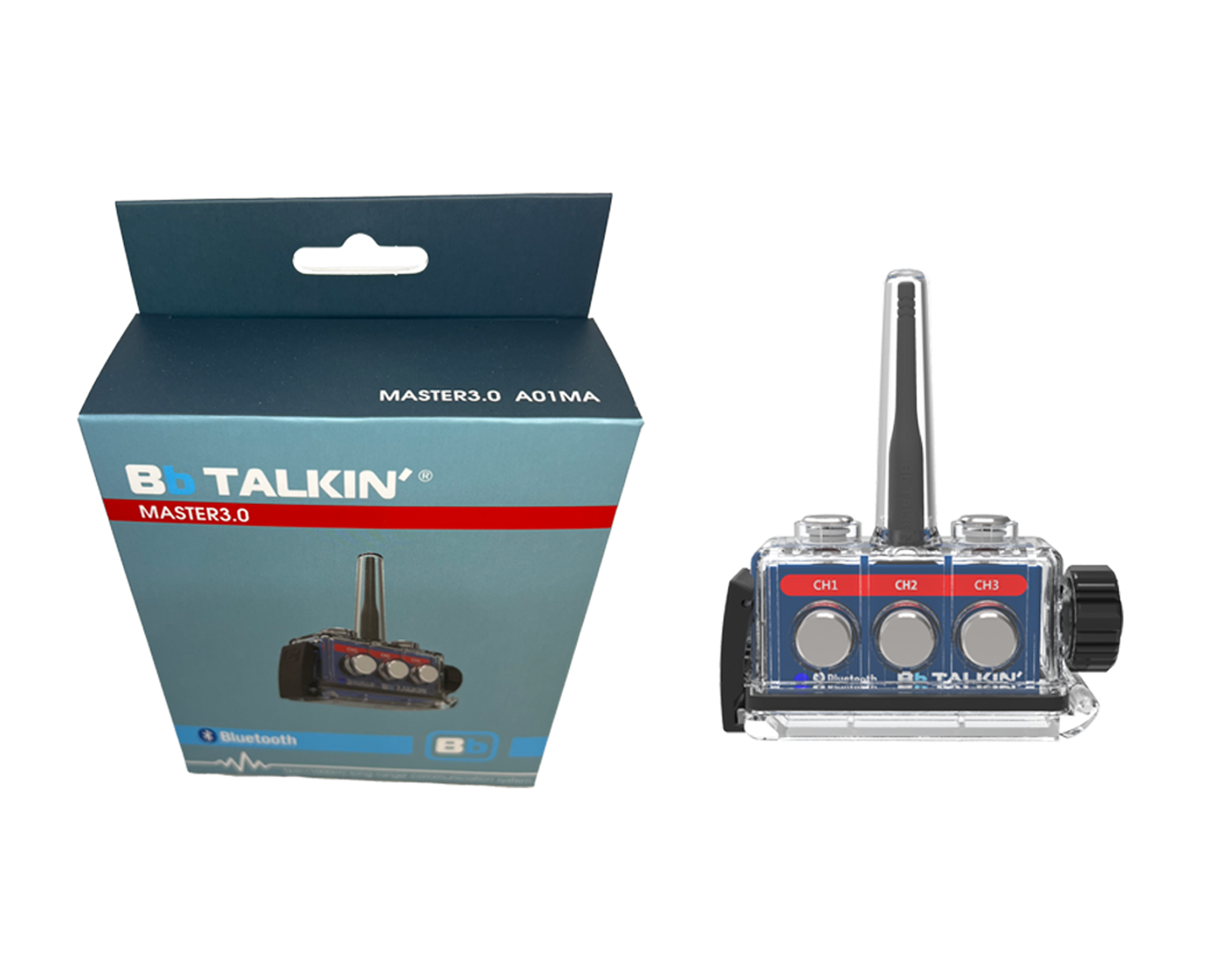

This is our new Master 3.0 unit. (A01M). When using our new Bb 3.0 devices, if you wish to have a 3-way or 4-way communication, you need to add a Master device.
Adding a Master will allow for you to have three or four people communicating together in real time. The Master device can control up to x3 Standard devices. The Master can easily connect or disconnect any channel by a quick press of the button.
** Master Unit cannot connect to our Advance Units.
** Master Unit and Master Unit cannot connect to one another.
** Master Unit cannot pair to Smart Phone. ONLY Standard Unit can pair to a phone.

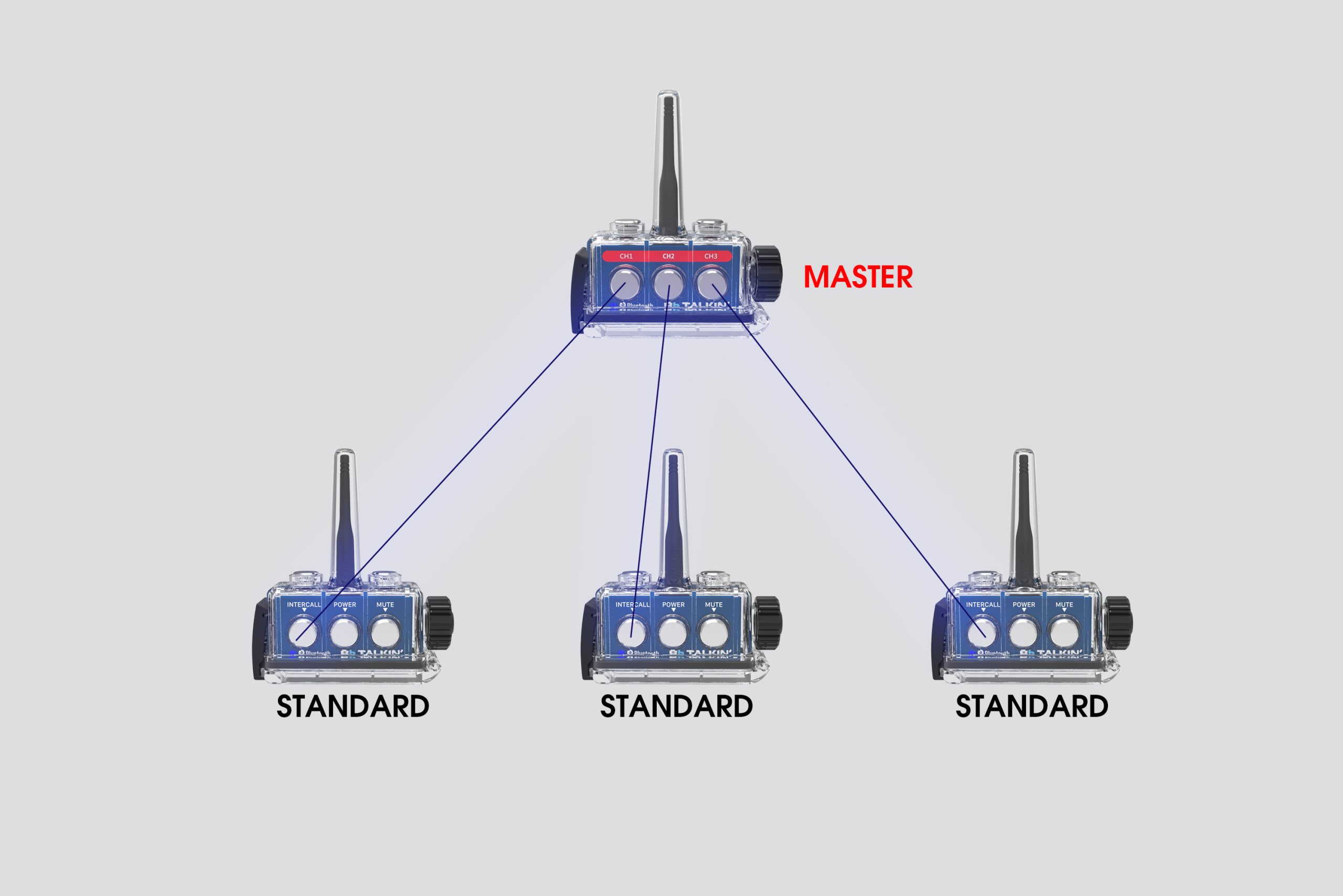

To understand how our new 3.0 units connect for a 2, 3 or 4 way communication, below is a helpful connection chart.
Upon receipt of your Master unit, you will have to pair up your Standard units to a dedicated Master CH. Once you have paired your devices together, they remember each other and you do not have to go through the pairing process again. Simply power on all units and press the Master’s CH button to connect.
For complete instructions, visit our instructions page.
One year limited warranty from date of purchase. Please follow our instructions carefully as you are using electronics on the water. It is important to always inspect your equipment after each use to make sure all seals are secure. If you are using during extreme sports and falls are taken with the equipment on, make sure your case did not incur any cracks or breaks. Water damage is not covered under warranty.

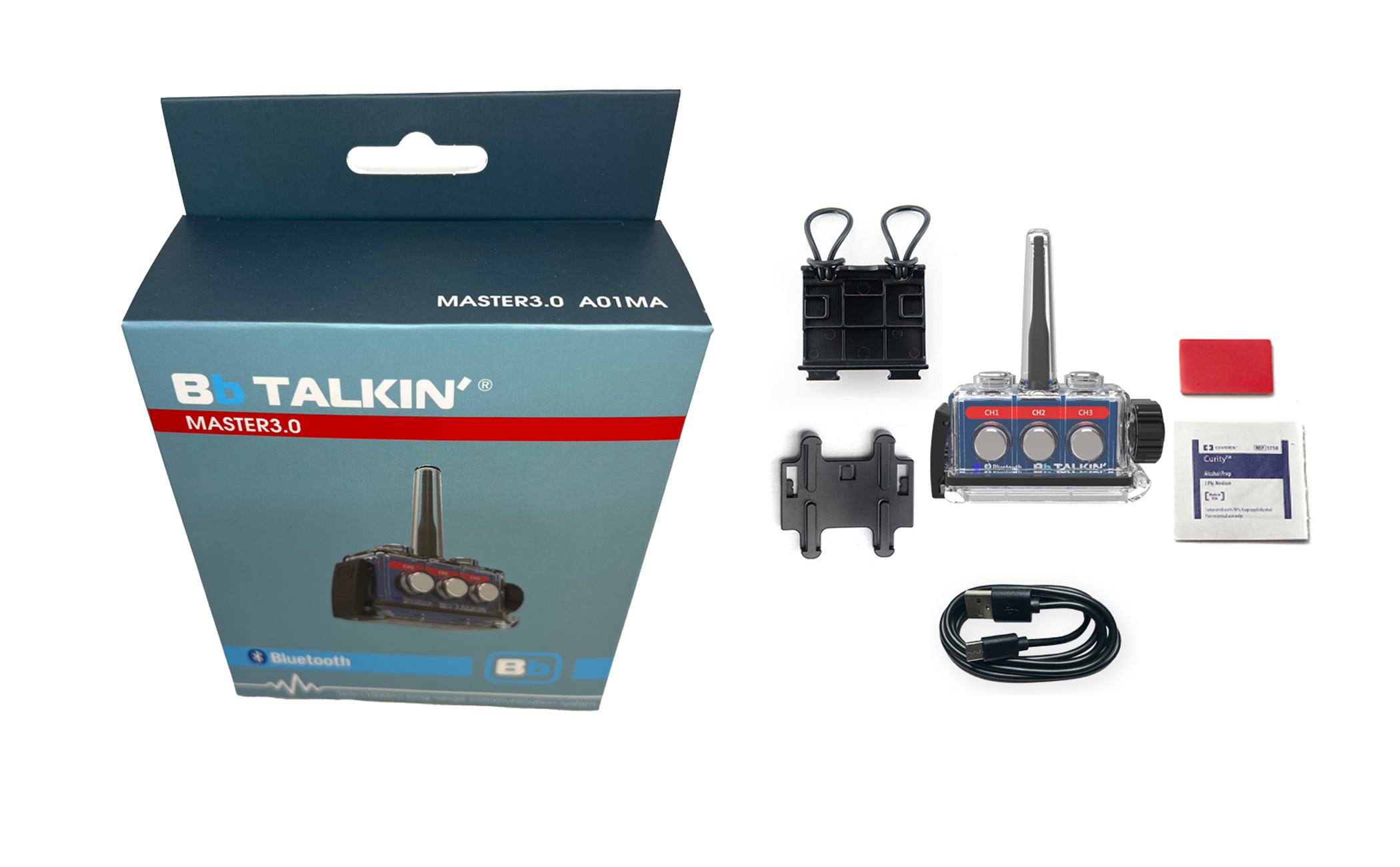

1-piece set SKU: A01M
Intercall talk time: 14 hr
Charge time: 2 hr
Waterproof: IPX7 *must be in the waterproof case
When not in use, store in a climate controlled environment.
LED: The second indicator after power ON
Blue = 100% – 60%
Purple = 60% – 40%
Red = 40% – 0%
Power on Prompt:
“bbtalkin intercom” = 100% – 60%
“battery mid” = 60% – 40%
“battery low” = 40% – 0%
AC adapter 5V± 5% 500mA
AC adapter less than 5V.
Do not use higher than 5V or this will damage the IC unit and void warranty. Please make sure the device is completely dry before charging.
Charging cable: USB Type C
Red = Charging
Blue = Fully Charged
3.0 devices do not connect to any prior model BbTALKIN devices.
3.0 will NOT work with BbTALKIN Advance Units.
Master device cannot connect to another Master device.
Do NOT modify or disassemble the device. If your device gets damaged or water inside the case, stop using it immediately. If your device gets wet, stop using and immediately turn off. Let it completely dry in a climate controlled area. Do not try to turn your device back on until completely dry.
If your device takes on water, it is most likely damaged beyond repair. Water damage is not covered under warranty.
Advance Units: NO
Our 3.0 Units will NOT connect to Advance Units.

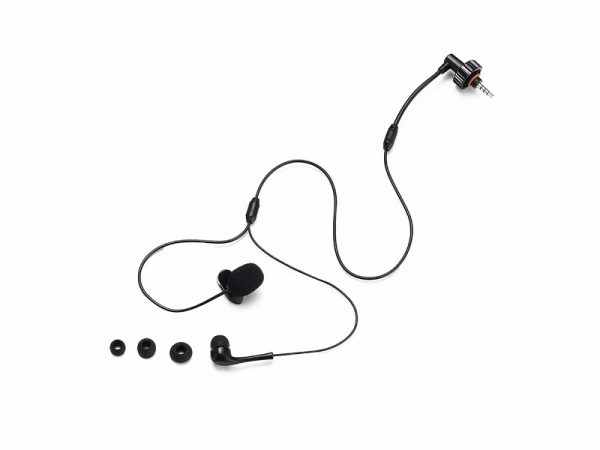

Our 3.0 Units are compatible with every BbTALKIN brand headset currently or previously sold.
Other brand headsets: YES
Our 3.0 Units are compatible with any headset that has a 3.5 mm jack. However, any other brand headset will not have our waterproof screw on connection into the waterproof case.
MP3, Smart Watches, Air buds or other Bluetooth Players: NO
Our 3.0 Units will NOT connect to all Bluetooth devices. We can only guarantee they will connect to a cell phone.
VHF Radios: NO
Our 3.0 Units will NOT connect to VHF radios.
2015-March 2018 BLACK Main and Master Unit models: NO
Our 3.0 Units will not pair with any older model BbTALKIN units.
BbSpeaker & BbRadio: NO
Our 3.0 Units will not pair to our BbSpeaker or BbRadio.
